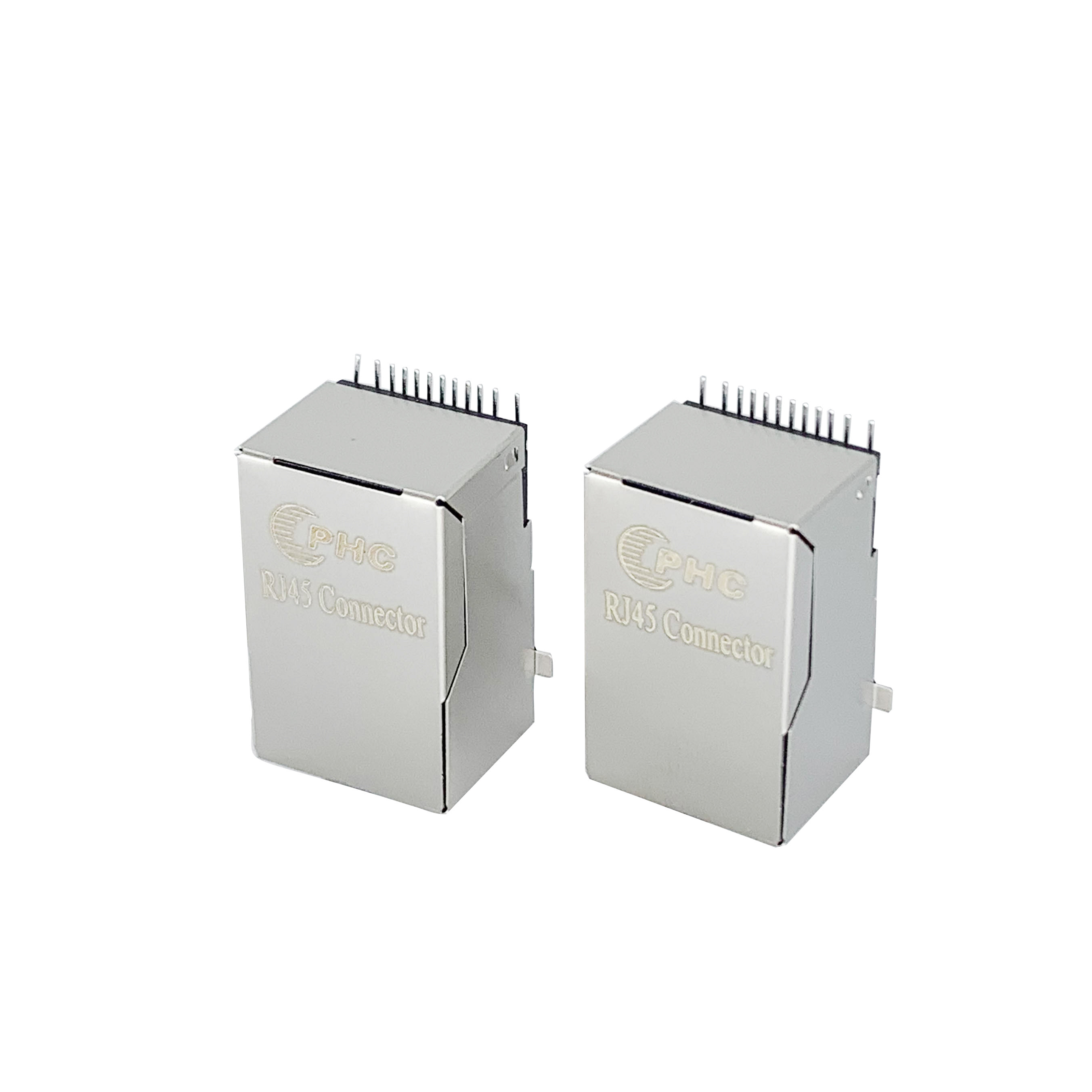

Magnetic 1000 Base T RJ45 Data Jack built to TIA EIA 568 B standards designed for and Ethernet network installations

The RJ45 Modular Jack is a high-quality Ethernet Jack Connector designed to meet the rigorous demands of modern networking environments. Engineered in compliance with the TIA/EIA-568-B standards, this RJ45 Data Jack ensures reliable and consistent performance, making it an ideal choice for both residential and commercial networking applications.

One of the standout features is its robust construction and precise mechanical design. With dimensions of 21.25 x 15.90 x 13.40mm, the compact form factor allows for easy integration into a wide variety of network devices and patch panels. The through-hole mounting style ensures a secure and stable connection to the PCB.

Designed to support data rates of 10/100 Base-T Ethernet, this RJ45 Data Jack is perfect for networks requiring fast and reliable transmission speeds up to 100 Mbps. It accommodates standard Ethernet cables and ensures minimal signal loss and interference.

Operating efficiently within a wide temperature range of -40°C to 85°C, it is well-suited for use in diverse environmental conditions, including industrial settings and outdoor installations. The through-hole mount provides a straightforward soldering process, which simplifies assembly and enhances connection strength.

The RJ45 Modular Jack is an essential component widely used in various networking environments, particularly designed to meet the rigorous demands of server applications. Built with a robust 0.2mm brass shield material, this RJ45 Network Connector ensures excellent durability and reliable electromagnetic interference (EMI) protection.

Primarily intended for use in servers, the RJ45 Modular Jack plays a vital role in establishing secure and efficient network connections. It serves as the interface for RJ45 Modular Plugs, enabling fast and reliable Ethernet connectivity. This makes it perfect for server racks, network switches, and communication hubs where consistent data transmission is crucial.

In real-world application scenarios, the RJ45 Modular Jack is commonly found in high-density server environments where reliable network connectivity is non-negotiable. Data centers rely on these connectors to maintain uninterrupted communication between servers, storage devices, and network infrastructure.
